Indoor Unit

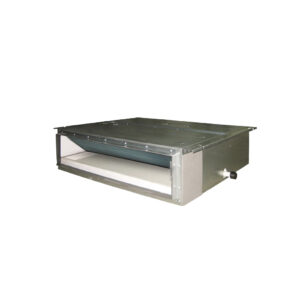

Low-Static Duct Type

With a sleek, compact design, the Tosot concealed duct indoor units offer the ultimate in flexibility and discretion. These slim duct units are designed to be concealed above a suspended ceiling or in closet space; delivers air via ducting or suitable ceiling wall grilles.

  • Low static pressure capability
  • Slim line construction
  • Alternate return air from bottom or rear
  • Internal condensate pump
  • Sentry float switch
  • Remote & wired controller options

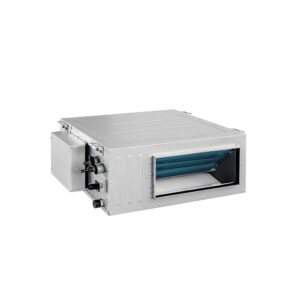

High-Static Duct Type

Compact and powerful, the high static slim duct offers the ultimate in flexibility and discretion. Concealed above a suspended ceiling or within open closet spaces to deliver conditioned air via extended ducting and suitable ceiling or wall grilles.

  • High static pressure capability
  • Slim line construction
  • Outside air capability
  • Advanced filter options
  • Internal condensate pump
  • Sentry float switch
  • Remote & wired controller options
  • I-Feel function

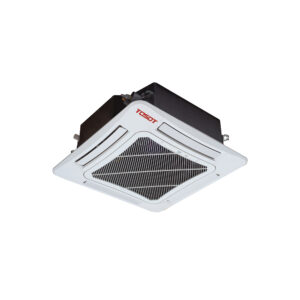

4-Way Ceiling Cassette Type

Tosot’s 4-Way Ceiling Cassette will inconspicuously provide quiet performance through innovative design. The ceiling cassette is suitable for any room and can be easily installed in a suspended ceiling with only a discreet decorative discharge grille visible.

  • 4-Way discharge air
  • Multiple fan speeds
  • Swing louver control
  • Automatic voltage adaption
  • Internal condensate drain pump
  • Sentry float switch
  • Decorative discharge air grille
  • Fresh air intake (24K model only)
  • Remote & wired controller options

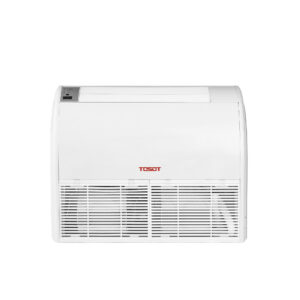

Floor Ceiling Type

Tosot’s universal floor ceiling indoor units are designed to be suspended from a ceiling or mounted low on a wall. The slender and lightweight design is perfect for restaurants or hallways where wall space is limited.

  • Multiple fan speeds
  • Sleep function
  • Swing louver control
  • Washable, polymeric air filters
  • Privacy lock mode
  • Automatic voltage adaption
  • Remote & wired controller options

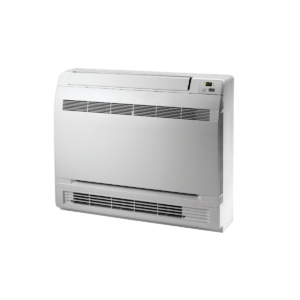

Console Type

Tosot’s Console indoor units are aesthetically pleasing and the perfect size for any room. It can be mounted as low as six inches above the floor and has front panel access to the filter for ease of cleaning.

  • Multiple fan speeds
  • Comfortable sleep mode
  • Swing louver
  • Cleanable air filter
  • Dry coil mode for anti-mildew protection
  • IR remote control included

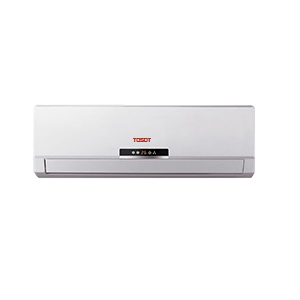

Wall Mount Type

The Lomo 23 Seer ductless wall mount has a compact design that blends well with any decor, the perfect option for your home or office needs.

  • Multiple fan speeds
  • Swing louver control
  • Precise airflow control
  • WIFI Ready
  • Automatic voltage adaption
  • I-Feel function
  • Remote & wired controller options

Technical Specifications

Duct Type
High-Static Duct Type
Cassette Type
Floor Ceiling Type
Console Type
Duct Type
ModelTM09HFDITM12HFDITM18HFDITM21HFDITM24HFDI
CapacityCoolingBtu/h850011900153002040023800
HeatingBtu/h950013100187002260027400
Power SupplyPh/V/Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz
Airflow Volumem³/h450/300/250550/400/300700/600/5001000/750/5501000/750/550
Sound Pressure LeveldB(A)37/34/3139/35/3241/37/3342/38/3442/38/34
Dimension
(WxHxD)		Outlinemm700×615×200700×615×200900×615×2001100×615×2001100×615×200
Packagemm893×743×305893×743×3051123×743×3051323×743×3051323×743×305
Piping ConnectionLiquidmmφ6.35φ6.35φ6.35φ9.52φ9.52
Gasmmφ9.52φ9.52φ12.7φ15.9φ15.9
Net Weight/Gross WeightIndoorkg22/2723/2927/3631/4131/41
Loading Quantity40' GPsets234234192162162
40' HPsets234234192162162
High-Static Duct Type
ModelTM09HSFDITM12HSFDITM18HSFDITM21HSFDITM024HSFDI
CapacityCoolingBtu/h900012000180002100024000
HeatingBtu/h950013000190002300027000
Power SupplyPh/V/Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz
Airflow Volumem³/h550/430/360/320600/490/420/3601000/700/530/4901000/700/530/4901250/950/770/690
Sound Pressure LeveldB(A)36/30/27/2538/33/29/2639/33/29/2639/33/29/2642/36/32/28
Dimension
(WxHxD)		Outlinemm830×754×300830×754×3001130×754×3001130×754×3001130×754×300
Packagemm897×808×360897×808×3601205×813×3601205×813×3601205×813×360
Piping ConnectionLiquidmmφ6φ6φ6φ6φ6
Gasmmφ9.52φ12φ16φ16φ16
Net Weight/Gross WeightIndoorkg32/3832/3842/48.542/48.542/48.5
Loading Quantity40' GPsets168168138138138
40' HPsets196196161161161
Cassette Type
ModelTM12HKDITM18HKDITM24HKDI
CapacityCoolingBtu/h120001440022800
HeatingBtu/h130001600027400
Power SupplyPh/V/Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz
Airflow Volumem³/h650/560/520/450710/670/590/4501280/1220/1100/880
Sound Pressure LeveldB(A)44/41/38/3447/45/41/3547/45/41/36
Main body Dimension
(WxHxD)		Outlinemm596×596×240596×596×240840×840×240
Packagemm778×738×300778×738×300963×963×325
Panel Dimension
(WxHxD)		Outlinemm670×50×670670×50×670950×60×950
Packagemm763×105×763763×105×7631033×133×1038
Net Weight /Gross Weight
(Main body)		kg20/2420/2426/32
Net Weight /Gross Weight
(Panel)		kg3.5/53.5/57/11
Piping ConnectionLiquidmmφ6φ6φ9.52
Gasmmφ9.52φ12φ16
Loading Quantity40' GPsets329329168
40' HPsets376376192
Floor Ceiling Type
ModelTM09HBTDITM12HBTDITM18HBTDITM24HBTDI
CapacityCoolingBtu/h8500119001700022800
HeatingBtu/h9500131001870027400
Power SupplyPh/V/Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz
Airflow Volumem³/h700/610/540/420700/610/540/420680/590/520/410950/870/800/720
Sound Pressure LeveldB(A)38/35/30/2638/35/30/2638/35/30/2738/35/31/27
Piping ConnectionLiquidmm6669.52
Gasmm9.52121216
Panel Dimension
(WxHxD)		Outlinemm870×665×235870×665×235870×665×2351200×665×235
Packagemm1033×770×3001033×770×3001033×770×3001363×770×300
Net Weight/Gross Weightkg25/3025/3025.5/30.533/40
Loading Quantity40' GPsets231231231175
40' HPsets264264264200
Console Type
ModelTM09HEDITM12HEDITM18HEDI
CapacityCoolingBtu/h90001200018000
HeatingBtu/h95001300019800
Power SupplyPh/V/Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz1Ph,208/230V,60Hz
Airflow Volumem³/h500600650
Sound Pressure LeveldB(A)40/38/33/2643/40/37/3248/46/41/35
Piping ConnectionLiquidmmφ6φ6φ6
Gasmmφ9.52φ9.52φ12
Panel Dimension
(WxHxD)		Outlinemm700×600×215700×600×215700×600×215
Packagemm788X695X283788X695X283788X695X283
Net Weight/Gross Weightkg15/1815/1815/18
Loading Quantity40' GPsets380380380
40' HPsets426426426
